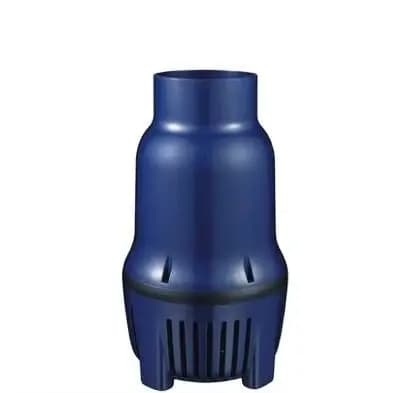

Jebao LP-45000 Fish Pond Water Pump

Jebao LP-45000 Fish Pond Water Pump – Powerful, Energy‑Saving Flow for Koi & Garden Ponds

The Jebao LP-45000 is a submersible pump engineered for koi ponds, garden water features, fountain spouts and small waterfalls. Its high‑efficiency motor delivers a robust 45,000 L/hr flow while consuming only 200 W, providing strong circulation with minimal energy cost. The ultra‑wide caliber impeller doubles the flow capacity, and the sealed ABS shell protects the unit from corrosion and aging.

Integrated bottom‑grid filtration captures particles up to 6 mm, safeguarding the motor and reducing cleaning frequency. Quiet operation is achieved through shock‑absorption and noise‑reduction technology, making it ideal for residential settings where sound matters.

Specifications

• Model: LP45000
• Rated Voltage: 220–240 V / 50 Hz
• Rated Power Input: 200 W
• Max Total Head: 5 m
• Flow Rate: 45,000 L/hr
• Max Operation Depth: 2 m
• Dimensions (L × W): 315 mm × 176 mm

How to Use This Submersible Pump

1. Choose a location in the pond where the pump can be fully submerged, respecting the maximum operation depth of 2 m.
2. Secure the pump using the fixed‑screw installation method provided, ensuring the deep‑water filter cover is properly seated.
3. Connect the power cord to a 220–240 V outlet and switch the pump on; the motor will self‑protect and start quietly.
4. Adjust any flow‑control valves or external fittings to achieve the desired water circulation pattern.
5. Periodically check the intake grille for debris buildup and clean as needed.

Care & Maintenance Tips

• Turn off and unplug the pump before performing any cleaning or inspection.
• Remove the bottom‑grid filter regularly and rinse to prevent blockage of particles larger than 6 mm.
• Inspect the ceramic axle and impeller for wear; replace only with genuine Jebao parts.
• Keep the ABS housing free from abrasive chemicals; rinse with fresh water after each cleaning.
• Run the pump for a few minutes after each pond cleaning to clear residual debris.
