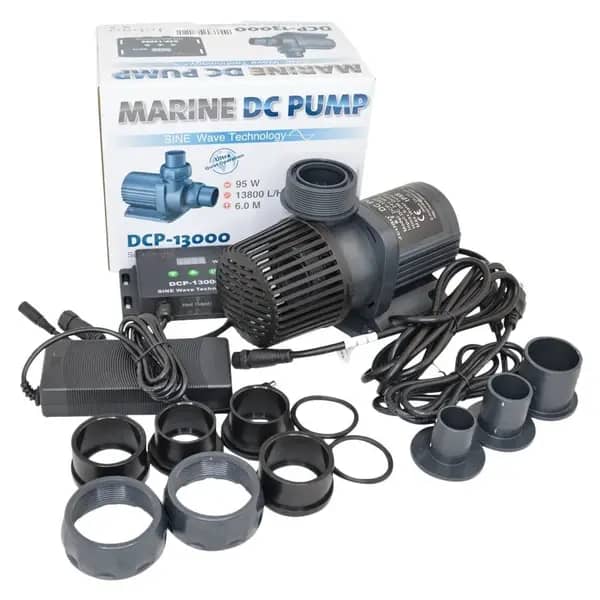

Jebao Jacod DCP-13000 DC Pump: Powerful, Efficient, and Ultra-Quiet Aquarium Circulation
The Jebao Jacod DCP-13000 DC Pump represents the pinnacle of modern aquarium circulation technology, offering aquarists an unparalleled combination of power, precision, and efficiency. This robust boost pump is engineered to deliver a maximum flow rate of 13,000 liters per hour with an impressive head height of 6 meters, ensuring vigorous water movement vital for healthy aquatic ecosystems. Its advanced design incorporates SINE wave technology, which dramatically reduces operational noise, providing an incredibly quiet performance that enhances the tranquility of your aquarium environment.
Designed with energy conservation in mind, the DCP-13000 can achieve up to 65% energy savings compared to conventional pumps, translating into lower electricity bills without compromising on performance. The included adjustable controller allows for meticulous control across 70 speed stages (F030 – F100), enabling you to tailor the water flow to the specific needs of your tank's inhabitants and aquascape. With its hard-wearing ceramic shaft and intelligent IC electronic detection system that automatically shuts down the pump in dry run situations, this pump offers both exceptional durability and peace of mind.
Specifications
- Model: Jebao DCP 13000
- Power Consumption: 95 W (Nominal at highest level, actual consumption depends on setting)
- Voltage: 110–120 V / 60 Hz
- Maximum Flow Rate: 13,000 L/h (3,645 GPH)
- Maximum Head Height: 6.0 m (19.6 ft)
- Dimensions: 9 × 4 × 5.5 inches (approximately 22.86 × 10.16 × 13.97 cm)
- No Copper Parts: Completely safe for all aquarium use.
- Usage: Internal use only.
- Memory Function: Recalls settings automatically after power interruption.
- Controllable Speed Stages: 70 stages (F030 – F100).
- Soft Start Function: Ensures gentle power-up.
- Suitability: Ideal for both freshwater and saltwater aquariums.
- Pause / Feeding Button: 10-minute pause with soft restart for convenient feeding.
- Lockable Keystroke Control: Parental control feature to prevent accidental changes.
- Automatic Display Dimming: Display dims after 25 seconds of inactivity.
- Hose Connectors (Suction & Discharge): Compatible with 25 mm, 32 mm, and 40 mm PVC pipes.
How to Use This Submersible Pump
- Unpack and Inspect: Carefully remove the Jebao Jacod DCP-13000 DC Pump and its components from the packaging. Inspect for any signs of damage.
- Connect Hoses: Attach the appropriate hose connectors (25 mm, 32 mm, or 40 mm) to both the suction and discharge sides of the pump, ensuring a secure, leak-free connection with your aquarium's plumbing system.
- Placement: Position the pump internally within your aquarium, sump, or filtration system. Ensure the pump is fully submerged in water before turning it on to prevent dry running.
- Power On and Adjust Flow: Plug the pump into a suitable power outlet. Use the adjustable controller to select your desired flow rate from the 70 available speed stages (F030 – F100). The soft start function will ensure a gradual power-up.
- Utilize Special Functions: For feeding, press the 'Pause/Feeding' button to temporarily stop the pump for 10 minutes, after which it will soft restart. The memory function will recall your last settings after any power interruption.
- Lock Control (Optional): If desired, activate the lockable keystroke control to prevent accidental adjustments to the settings.
Care & Maintenance Tips
- Regular Cleaning: Disconnect the pump from power and regularly clean the impeller and pump housing to prevent debris buildup, which can reduce efficiency and lifespan.
- Inspect Connections: Periodically check all hose connections for any signs of leaks or blockages, ensuring optimal water flow and preventing potential issues.
- Submersion: Always ensure the pump is fully submerged in water during operation. Running the pump dry can cause irreversible damage, though the IC electronic detection offers some protection.
- Shaft Inspection: During cleaning, inspect the hard-wearing ceramic shaft for any signs of wear or damage, replacing if necessary to maintain quiet and efficient operation.
- Electrical Safety: Always unplug the pump from the power source before performing any maintenance or cleaning procedures to prevent electrical hazards.
- Environmental Factors: Avoid placing the pump in areas prone to excessive sediment or large debris, as this can lead to frequent clogging and reduced performance.
