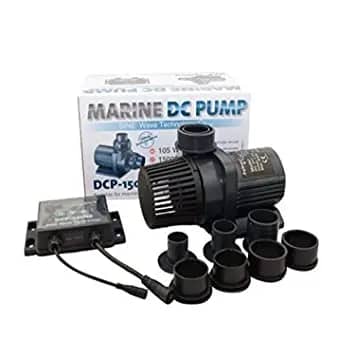

Jebao Jacod DCP-15000 DC Pump – High-Performance, Energy-Efficient Circulation
The Jebao Jacod DCP-15000 DC Pump is engineered to provide high-performance, energy-efficient water circulation for a wide range of demanding aquarium and pond applications. This robust pump, part of the acclaimed Jecod/Jebao DCP series, features a refined design that ensures significantly quieter operation and improved energy efficiency, saving up to 65% on power consumption. Its innovative SINE wave technology and enhanced enclosed impeller design contribute to an ultra-quiet environment, making it an ideal choice for sensitive aquatic ecosystems.
Equipped with an advanced digital controller, the DCP-15000 allows for exceptional precision in pump performance, with adjustable speed levels from 30% to 100% in 1% increments. Key safety features include IC electronic detection for automatic shutdown when no water is detected, safeguarding the pump from damage. A wear-resistant ceramic shaft guarantees extended operational life, while the soft-start function ensures a gradual increase in flow. The pump also includes a practical feeding mode, pausing operation for 10 minutes, and retains settings after power interruptions, making it a reliable and user-friendly solution for both internal and external installations in freshwater and marine environments.
Specifications
- Model: Jebao DCP 15000
- Maximum Flow Rate: 15,500 L/h
- Adjustable Flow Rate: 4,500 – 15,500 L/h
- Maximum Head Height: 7.0 m
- Maximum Power Consumption: 105 W
- Controller Speed Levels: 10 preset levels (30% – 100%), adjustable in 1% steps
- Dimensions: 223 × 126 × 192 mm
- Technology: SINE wave for ultra-quiet operation
- Safety Features: IC electronic detection with automatic shutdown in case of no water
- Shaft Material: Hard-wearing ceramic shaft
- Fittings: Standard US fittings for hard piping
- Application: Suitable for both freshwater and marine environments
- Installation: Suitable for internal and external installations
- Additional Features: Soft-start function, Feeding mode (10-minute pause), Settings retained after power interruption
How to Use This DC Pump
- Carefully unpack the Jebao DCP-15000 DC Pump and its digital controller from the packaging.
- Determine your desired installation location: either fully submerged for internal use or plumbed externally.
- Connect appropriate plumbing or hosing to the pump using standard US fittings to ensure a secure and leak-free connection.
- Plug the pump into the digital controller, then connect the controller to a suitable power outlet.
- Utilize the digital controller to adjust the flow rate to your aquarium or pond's specific needs, selecting from 10 preset levels or fine-tuning from 30% to 100% in 1% steps.
- Activate the feeding mode via the controller as required to pause the pump's operation for 10 minutes, allowing fish to feed undisturbed.
Care & Maintenance Tips
- Regularly inspect the pump and impeller for any debris, algae, or blockages that could impede performance or increase noise.
- Gently clean the impeller and pump housing periodically to ensure optimal flow and energy efficiency.
- When used internally, always ensure the pump is fully submerged before operation to prevent dry running, though the built-in IC electronic detection offers protection against such events.
- For external installations, routinely check all plumbing connections and seals for any signs of leaks to maintain system integrity.
- Prior to performing any maintenance or cleaning, always disconnect the pump from the power source for safety.
- The hard-wearing ceramic shaft is designed for longevity, but proper and consistent cleaning will further extend the pump's service life.
