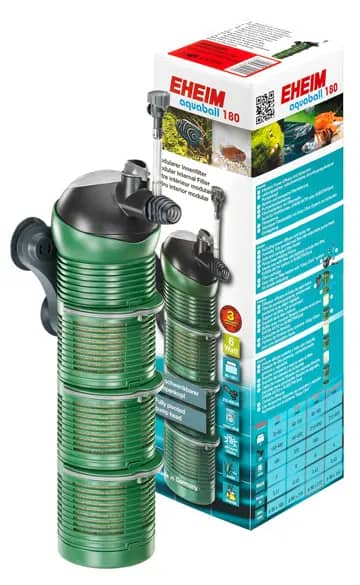

EHEIM aquaball 180 – 360° flow control and modular filtration
The EHEIM aquaball 180 combines a ball‑joint pumphead with a flexible, modular media system, giving you total control over water flow and filtration performance. Rotate the pumphead freely to aim the outflow, adjust the flow with the knob, and fine‑tune oxygen enrichment via the power‑diffusor. Its compact Ø96 mm design sits on suction cups, making installation and removal effortless.

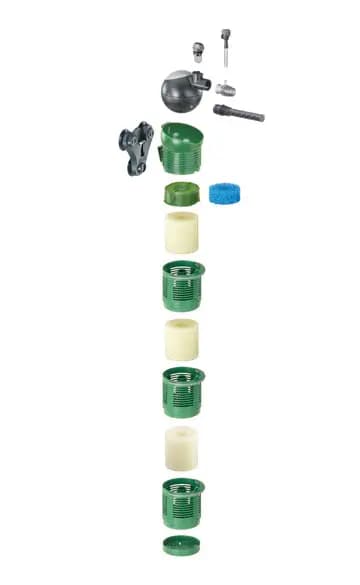

Built for tanks from 80 L up to 180 L, the aquaball 180 handles both freshwater and marine environments. The Easy‑Klick Locking System lets you clip filter baskets together, add extensions, or replace media without disturbing the beneficial bacterial colonies.
Specifications
- Dimensions (Ø): 96 mm
- Filter volume: 0.46 L
- Suitable aquarium size: 80 L – 180 L
- Power consumption: 6 W (50 Hz)
- Pumping head: 0.40 m – 0.43 m
- Flow rate: 210 L – 650 L per hour
- Height: 270 mm
- Freshwater compatible: Yes
- Sea water compatible: Yes
- Manufacturer guarantee: 3 years
- Packing: 2 parts (Depth 10.8 cm, Height 33.5 cm, Width 9.5 cm)
How to Use This Filter
- Attach the suction‑cup holder to clean glass and position the aquaball 180.
- Rotate the ball‑joint pumphead to aim the outflow toward the desired area of the tank.
- Insert the desired filter media (mechanical pad, fine pad, bioMECH, SUBSTRATpro, or EHEIM AKTIV) into the mediabox and any additional filter baskets.
- Adjust the flow rate with the control knob on the outflow nozzle.
- Set the power‑diffusor to regulate air intake for optimal oxygenation.
- Plug the unit into a standard 50 Hz power source and monitor the flow.
Care & Maintenance Tips
- Remove the unit from its suction‑cup holder for cleaning or media changes.
- Clean individual filter baskets separately to preserve beneficial bacteria.
- Replace mechanical media when it becomes visibly clogged; avoid cleaning all media at once.
- Rinse biological media gently with tank water to maintain bacterial colonies.
- Check the power‑diffusor regularly and adjust air intake as needed for healthy oxygen levels.
- Inspect suction cups for wear and replace if they lose grip.
