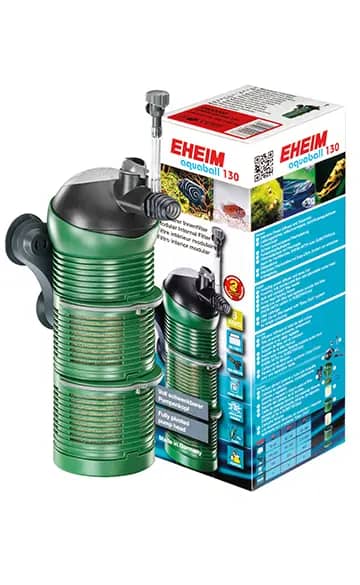

EHEIM aquaball 130 – Flexible, High‑Performance Internal Filtration
The EHEIM aquaball 130 is engineered for aquariums ranging from 60 L to 130 L, offering a powerful 6 W pump that can move 180‑550 L of water per hour. Its ball‑joint pump head rotates fully, allowing you to aim the filtered stream in any direction, while the flow‑control knob and power‑diffusor let you balance water movement and oxygenation for optimal fish health.

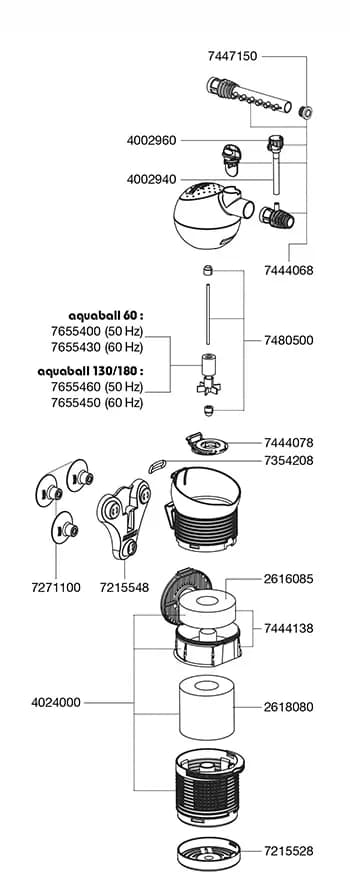

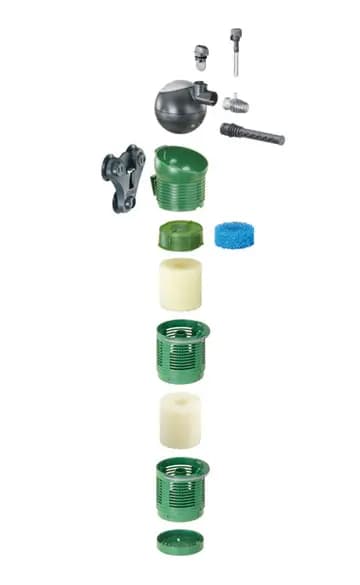

Its modular construction lets you customize filtration capacity by adding or removing filter baskets. The Easy‑Klick Locking System secures each basket, and the mediabox beneath the pump head accepts a variety of media – from mechanical pads to bio‑MECH, SUBSTRATpro or EHEIM AKTIV carbon – giving you complete control over mechanical, biological and chemical filtration.
Specifications
- Dimensions (Ø): 96 mm
- Filter volume: 0.32 L
- Suitable aquarium size: 60 L – 130 L
- Power consumption: 6 W (50 Hz)
- Pumping head (max): 0.40 m – 0.43 m
- Flow rate: 180 L – 550 L per hour
- Height: 215 mm
- Freshwater compatible: Yes
- Sea water compatible: Yes
- Manufacturer guarantee: 3 years
- Packing: 4 parts (Depth 10.8 cm, Height 27.8 cm, Width 9.5 cm)
How to Use This Internal Filter
- Attach the suction‑cup holder securely to the aquarium glass.
- Insert the filter unit into the holder and ensure the pump head is seated.
- Open the mediabox and add your chosen filter media (mechanical pad, bio‑MECH, SUBSTRATpro, or EHEIM AKTIV).
- Close the mediabox, clip any additional filter baskets using the Easy‑Klick system, and adjust the flow knob to the desired rate.
- Set the power‑diffusor to regulate air intake for optimal oxygenation.
- Plug the unit into a power source and monitor water clarity; adjust direction of the pump head as needed.
Care & Maintenance Tips
- Remove the filter from its holder regularly to clean each basket and replace worn media.
- Rinse mechanical pads and foam media in tank water to preserve beneficial bacteria.
- Replace adsorptive media (e.g., EHEIM AKTIV) after approximately four weeks or after medication treatments.
- Check suction cups for residue and re‑attach if they lose grip.
- Periodically inspect the pump head for debris and ensure the power‑diffusor is not clogged.
- Maintain consistent flow settings to avoid sudden changes that could stress fish.
